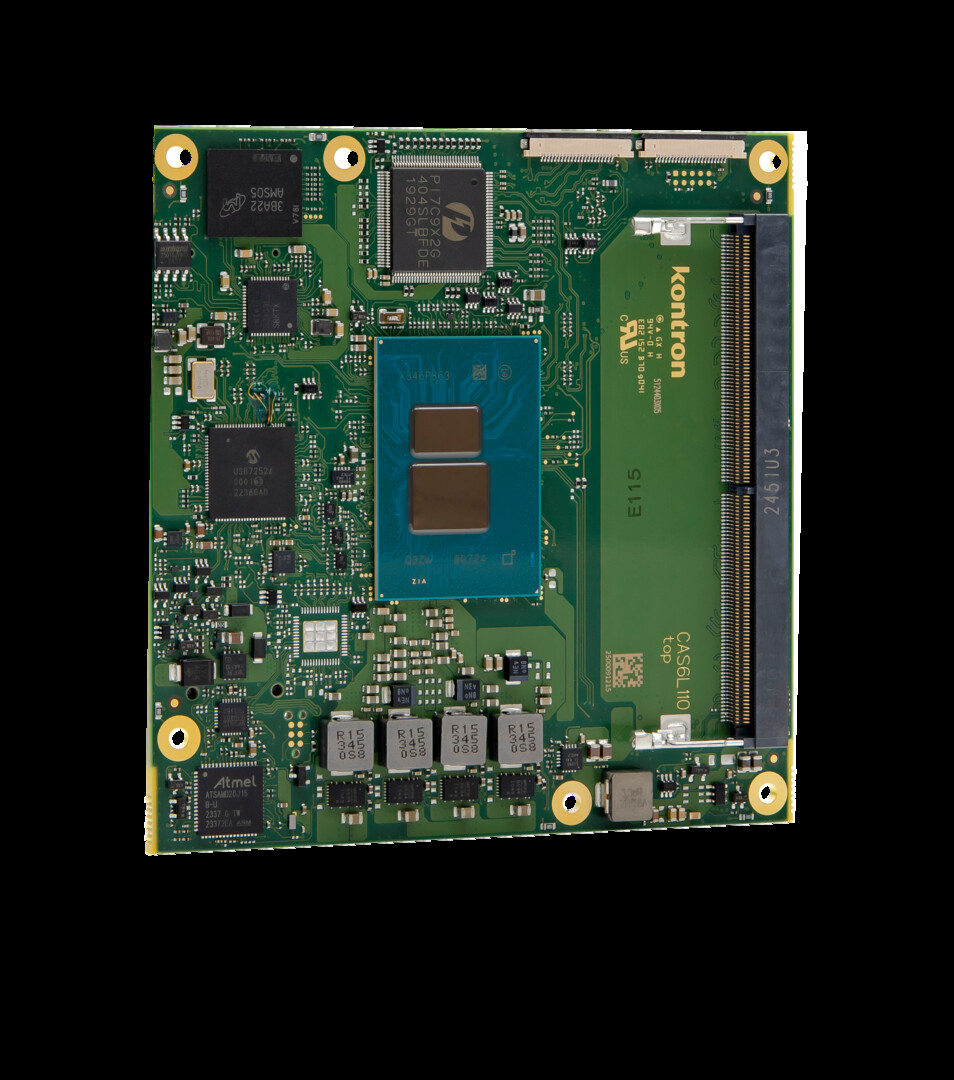

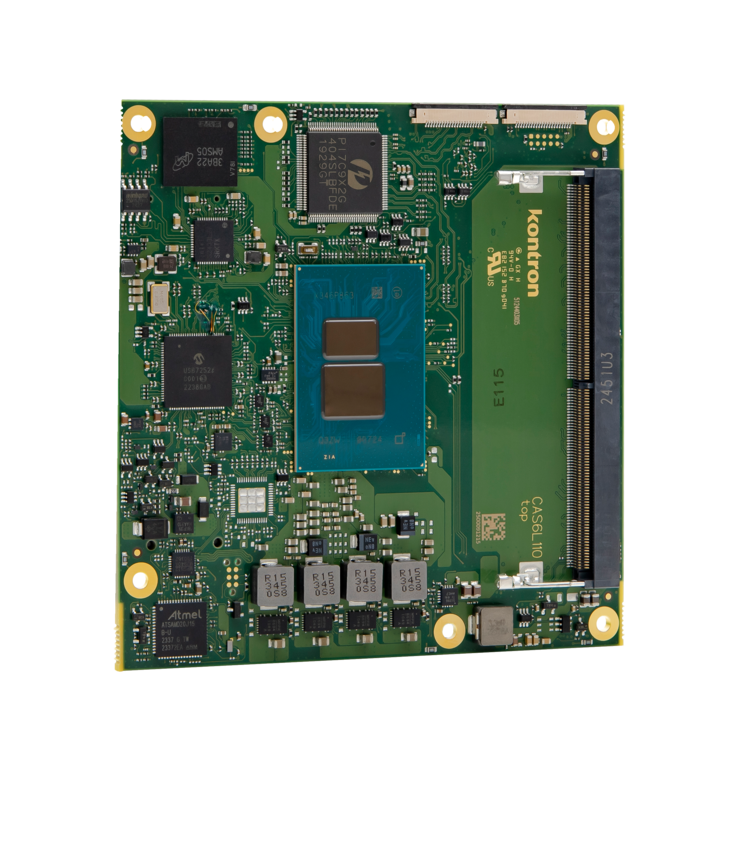

COMe-cAS6 (E2) New
COM Express® compact Type 6 with Intel Atom® x7000E / x7000RE
Specifications
- Low-Power – Performance/Watt optimized form factor solution
- Up to 16 GByte DDR5 4800 MT/s - In-Band ECC
- Up to 4x Graphics interfaces
- Up to 6x PCIe lanes, up to 4x USB 3.2/2.0, 6x USB 2.0
- Up to 2.5 Gb Ethernet with TSN support
- Industrial grade temperature
The COMe-cAS6 (E2) supports the broad scalability of the new Intel Atom® series x7000E/x7000RE, Intel® Processor N Series, and Intel® Core™ i3-N305 processor designed for IoT applications. The range extends from the cost-optimized 2-core to high-performance 8-core Intel® Core™ i3 solution with up to 3.8 GHz burst frequency.
The COMe-cAS6 (E2) provides up to 16 Gigabyte of DDR5-4800 memory via one SODIMM memory socket, supports up to four displays, six PCIe 3.0 lanes, up to four USB 3.2 Gen2/2.0, four USB 2.0 interfaces, two SATA ports, one 2.5 GBASE-T Ethernet with TSN and optional eMMC flash.
Downloads
Solution Brief
Intel Solution Brief: Computer-on-Module Flexibility at the Edge
Kontron COM Express® and COM-HPC® modules with 13th Gen Intel® Core™ mobile processors deliver powerful performance, AI, and graphics with portfolio flexibility for industrial-grade deployments.
[ 18933-1-intel-rpl-p-kontron-solution-brief-v4.pdf, 1.67 MB, Mar.03.2023 ]
Datasheets
Datasheet COMe-cAS6 (E2)
[ come-cas6_datasheet.pdf, 986.88 KB, May.27.2025 ]
Manuals
General Safety Instruction
[ general-safety-instructions-jumptec.pdf, 564.95 KB, Apr.09.2025 ]
White Papers
Robotic-Assisted Surgery White Paper
[ white-paper-beyond-science-fiction-robotic-assisted-surgery.pdf, 6.43 MB, Dec.17.2024 ]
Use Cases
Autonomous Driving
Read how our COM Express® Module is working perfect for application from b-plus with its flexibility, bandwith, reliability and the required graphics.
[ uc_b-plus_eu.pdf, 4.78 MB, May.26.2021 ]
COM Express® Basic for Autonomous Transportation in Rugged Environments
Implementing Kontron’s latest COMe® Basic based on Intel’s® 11th generation Xeon® processors and ECC memory provided the optimum power and performance
[ adas_en_use-case_kontron.pdf, 1.54 MB, Oct.11.2022 ]
The tough choice of Processors
Solving challenges in selecting computer boards & modules for IIoT projects. In this article we support you to make the right choice for your application: To find the best balance of processing power, graphics capabilities and connectivity on the one hand and size, power consumption, and cost on the other.
[ artikel_processor-choice_eu-1-.pdf, 4.42 MB, Apr.20.2023 ]
Tech Spec Sheet
COM EXPRESS® compact
[ tech-spec_comexpress.pdf, 7.06 MB, Apr.02.2025 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
COMe Eval Carrier2 T6
38116-0000-00-5 |
|
COM Express® Eval Carrier2 Type 6 with 5mm COMe connector | more |
