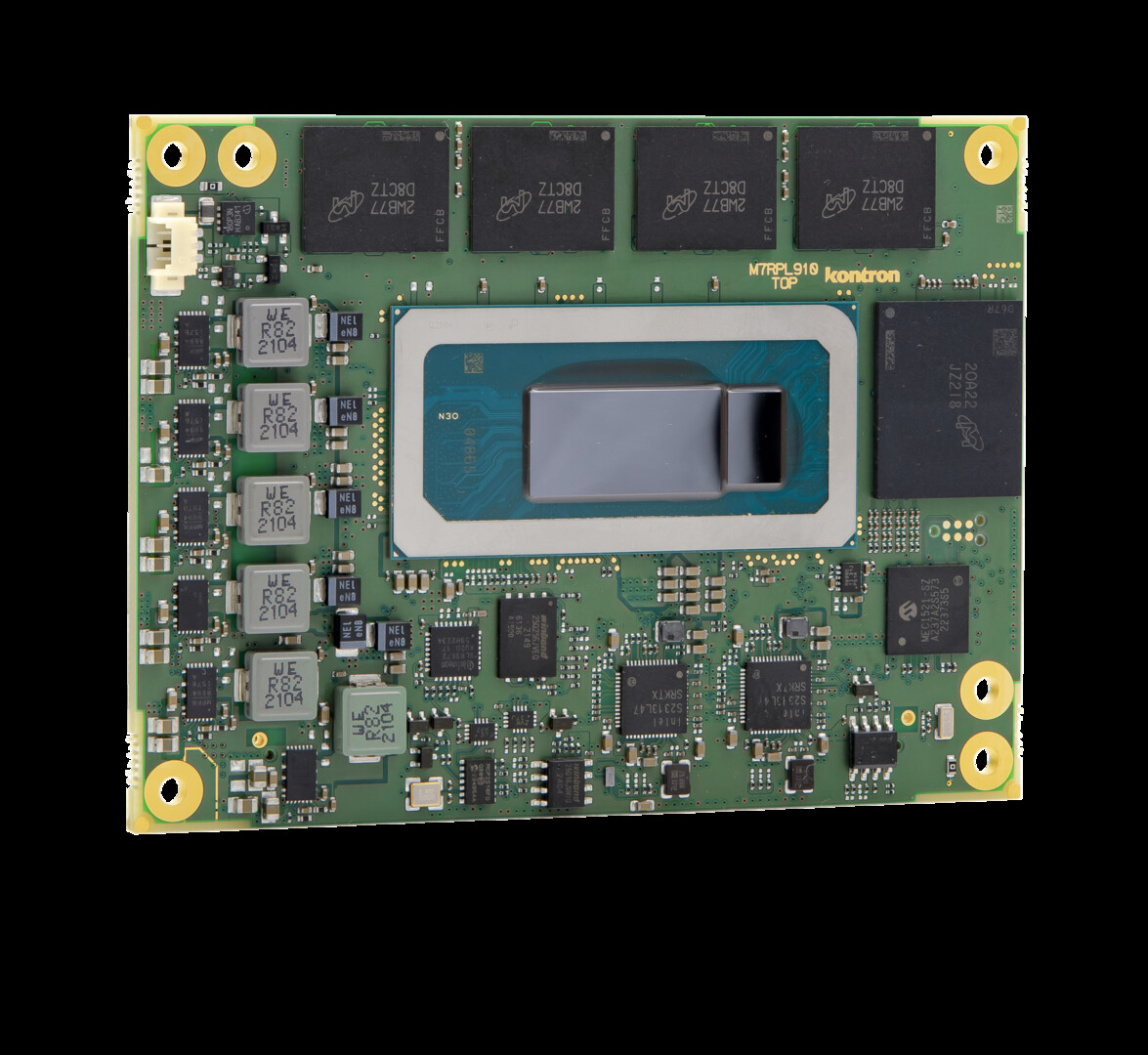

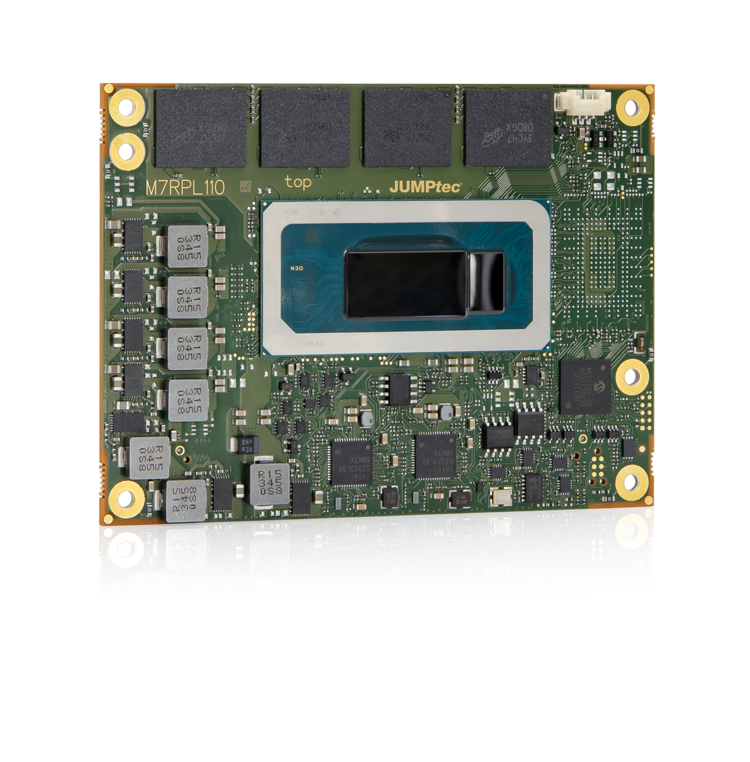

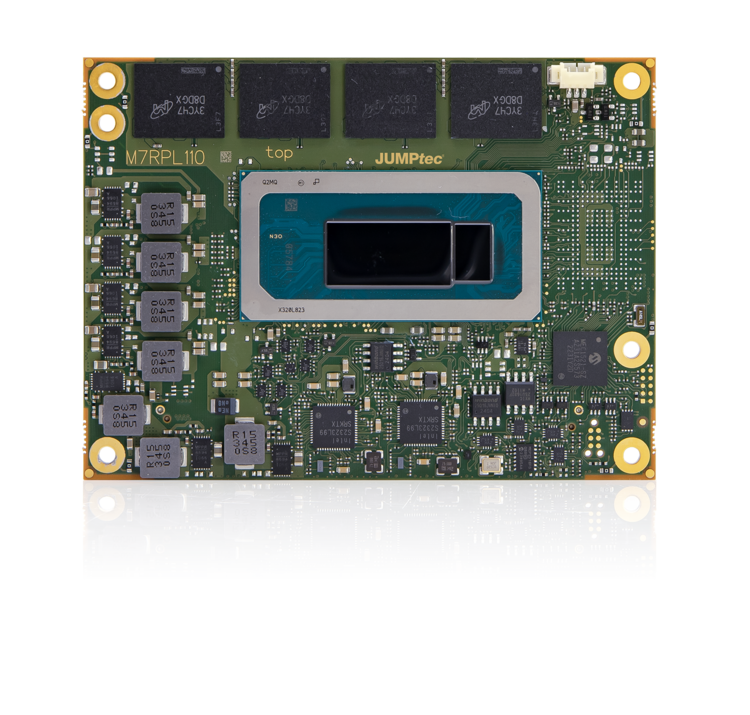

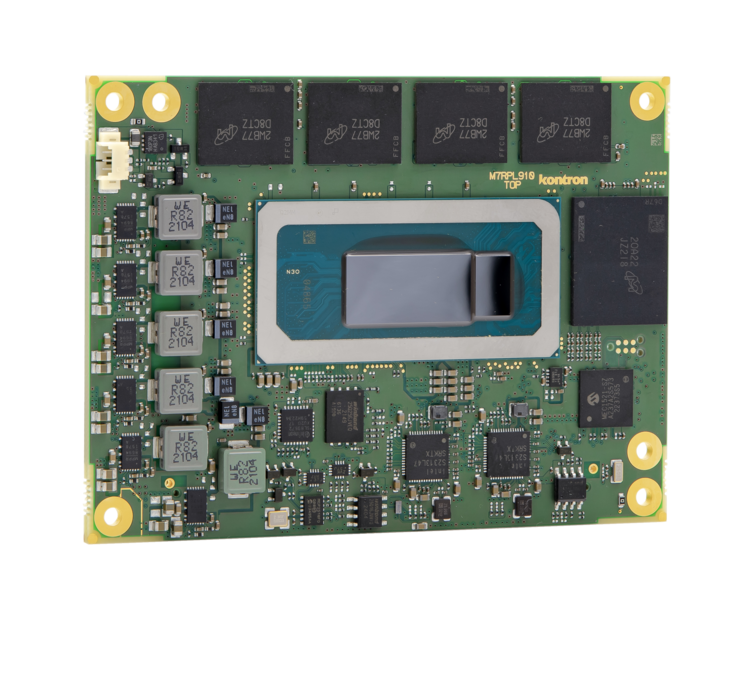

COMh-m7RP (E2) New
COM-HPC® Mini with 13th Generation Intel® Core™ Processors
Specifications
- High performance on small form factor
- Up to 64 GByte LPDDR5 6000 MT/s - In-Band ECC
- 16 PCIe lanes
- 2x 2.5 GbE with TSN support
- Optional NVMe SSD onboard

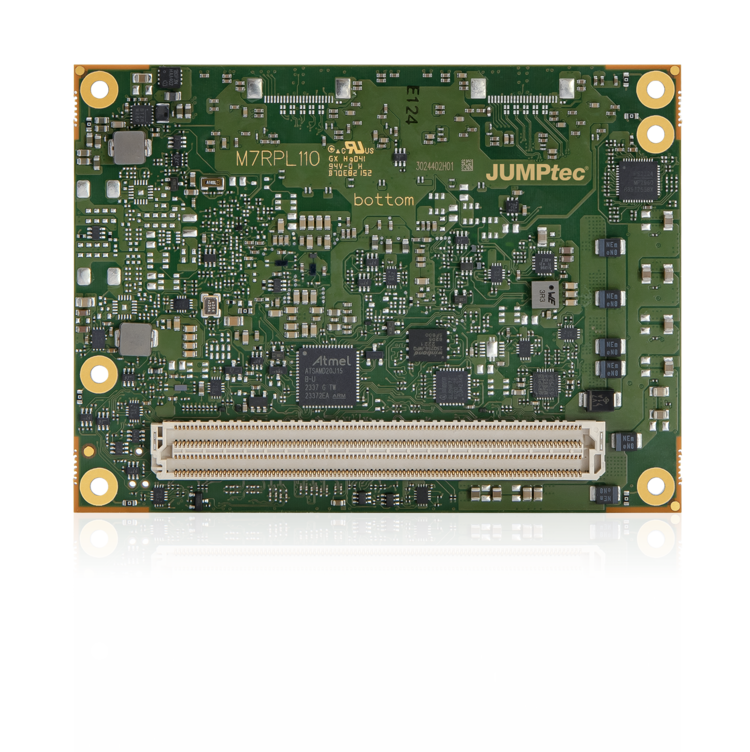

The COM-HPC Mini module measures only 95 mm x 70 mm and thus complements the COM-HPC standard with a more compact format compared to the COM-HPC Client and Server formats. The COM-HPC high-speed connector with 400-pins provides tremendous IO capabilities taking care of the increasing requirements for high-speed IO interfaces also in the small form factor segment.
The COMh-m7RP (E2) supports the whole range of the 13th Gen Intel® Core™ Raptor Lake family (-U / -P / -H) offering up to 14 cores (up to 6 P-cores and up to 8 E-cores) based on Intel® performance hybrid architecture. Up to 96 graphics execution units driven by Intel® Iris® Xe graphics deliver high-performance graphics and fast video processing for impressive experience and highly parallel AI workloads with four display pipes and Pipelock synchronization.
The modules come with up to 64 GByte LPDDR5(x)-6000 soldered memory and 2x 2.5 Gbit Ethernet, including TSN. As storage medium a NVMe SSD up to 1 TByte can be optionally integrated onboard.
With 16 PCI Express lanes - 8x PCIe Gen3 + 8x PCIe Gen4 (optional 8x PCIe Gen5 for higher performance SKUs) as well as versatile DDI / USB4 / USB3 interfaces, including Thunderbolt and DisplayPort Alternate Mode, the COMh-m7RP (E2) brings unprecedented IO connectivity to a very small form factor.
Downloads
Datasheets
Datasheet COMh-m7RP (E2)
[ comh-m7rp_datasheet.pdf, 1.55 MB, Apr.01.2025 ]
Manuals
COMh-m7RP (E2) User Guide
[ comh-m7rp-user-guide_rev1-0_2025-0725.pdf, 2.59 MB, Jul.25.2025 ]
General Safety Instruction
[ general-safety-instructions-jumptec.pdf, 564.95 KB, Apr.09.2025 ]
White Papers
Robotic-Assisted Surgery White Paper
[ white-paper-beyond-science-fiction-robotic-assisted-surgery.pdf, 6.43 MB, Dec.17.2024 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
COMh Eval Carrier Mini
HMT01-0000-10-0 |
|
COMh Eval Carrier Mini | more |
